RY13m Portable Drone Detector | 300 MHz–13.4 GHz | 5 km
Product Introduction

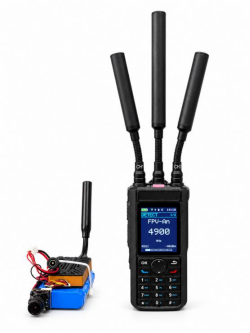

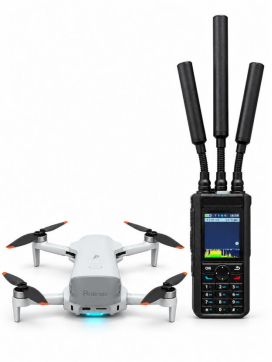

The RY13m Ultra-Wideband Portable Drone Detection Device is a compact RF-based solution designed for low-altitude airspace monitoring and drone detection.
Covering an ultra-wide frequency range of 300 MHz–13.4 GHz, the RY13m uses high-sensitivity RF receiving technology and an extensive drone signature library to identify more than 100 drone models and transmission types.
The device provides real-time information including detected drone model, operating frequency, signal strength and spectrum data. Under open line-of-sight conditions with typical full-power transmission from the target drone, the maximum detection range can reach up to 5 km.
With Remote ID reception, Bluetooth connectivity, OTA firmware upgrades and removable battery operation, the RY13m is designed for flexible field deployment and integration with professional counter-UAS solutions.
Product Feature
1. Ultra-Wideband RF Detection
Wideband RF scanning from 300 MHz to 13.4 GHz enables detection across a broad range of drone communication and control frequencies.
2. 100+ Drone Models Supported
Built-in drone signature library supports 100+ drone models and transmission types, including major-brand drones, analog FPV, digital FPV and Wi-Fi-based platforms.
3. Up to 5 km Detection Range
Provides a detection range of 500 m–5 km, depending on frequency band, environment and target drone characteristics.
4. Real-Time Spectrum Analysis
Displays real-time spectrum information together with target frequency, signal strength, detected drone information and other operational data.
5. Remote ID Reception
Supports Remote ID reception through 2.4 GHz Wi-Fi, 5.8 GHz Wi-Fi and 2.4 GHz Bluetooth, with support for applicable Chinese, US and European Remote ID standards.
6. Portable Field-Ready Design
With a compact 450 g configuration, removable battery and IP54 protection, the RY13m is designed for mobile deployment and outdoor monitoring.
7. Up to 8-Hour Battery Runtime
The removable 7.4 V / 2800 mAh Li-ion battery provides approximately 8 hours of continuous operation under room-temperature conditions.
8. OTA Firmware & Signature Library Updates
Firmware and drone signature data can be updated through Type-C or Bluetooth, allowing the detection library to be continuously expanded and optimized.
Supported Drone Types
Appendix: Partial Drone Detection Screenshots
| Analog FPV 1.3GHz |
Analog FPV 4.9GHz |
 |
 |
| Analog FPV 7.3GHz |
Analog FPV 13GHz |
 |
 |
| OpenIPC |
Artosyn ArtLynk:BetaFPV P1 |
 |
 |
| WalkSnail |
DJI-O4 |
 |
 |
| Autel |
Antigravity A1 |
 |
 |
| Lightbridge: Potensic_Atom(FEIMI X8) |
WIFI Drone:HF GPS5G |
 |
 |
Actual detection and identification performance may vary depending on drone model, frequency, transmission power, environment and operating conditions.
Applications
Low-Altitude Airspace Monitoring
Real-time RF monitoring for unauthorized or unidentified drone activity in low-altitude airspace.
Critical Infrastructure Protection
Suitable for monitoring sensitive sites and facilities where unauthorized drone activity may present operational or security concerns.
Public Safety & Major Events
Portable detection for temporary security deployments and large-area event monitoring.
Airport & Perimeter Security
Supports RF-based drone detection around airports, restricted areas and protected perimeters.
Border & Area Surveillance
Portable solution for mobile drone detection and RF situational awareness.
Counter-UAS System Integration
The RY13m can connect with compatible countermeasure equipment to support an integrated detection-to-countermeasure workflow.
Technical Specifications
| Parameter |
Specification |
| Model |
RY13m |
| Reception Frequency |
300 MHz–13.4 GHz |
| Detection Range |
500 m–5 km* |
| RF Sensitivity |
Up to –101 dBm |
| Supported Drone Types |
100+ models / transmission types |
| Remote ID |
2.4 GHz Wi-Fi, 5.8 GHz Wi-Fi, 2.4 GHz Bluetooth |
| Display |
2.4-inch TFT LCD |
| Display Resolution |
240 × 320 |
| Alarm |
Vibration, audible tone, GPIO output |
| Data Storage |
On-board storage |
| External Interfaces |
Type-C, Bluetooth, GPIO |
| Antenna Interface |
3 × SMA female |
| OTA Upgrade |
Type-C / Bluetooth |
| Battery |
Removable Li-ion battery |
| Battery Voltage |
7.4 V |
| Battery Capacity |
2800 mAh |
| Charging |
Type-C, 5 V / 1 A |
| Battery Runtime |
Approx. 8 hours* |
| Operating Temperature |
–25°C to +55°C |
| Storage Temperature |
–30°C to +60°C |
| Ingress Protection |
IP54 |
| Maximum Safe Input |
+1 dBm |
| Dimensions |
140 × 63 × 41 mm** |
| Weight |
Approx. 450 g |
| Antenna Configuration |
3 detection antennas |
* Detection range and battery runtime vary depending on operating conditions, frequency band, target type and environment.
** Main unit dimensions excluding antennas and back clip.
Remote ID Support
The RY13m supports Remote ID reception through:
- 2.4 GHz Wi-Fi
- 5.8 GHz Wi-Fi
- 2.4 GHz Bluetooth
Supported standards include:
- GB 46750-2025
- ASTM F3411-22a
- ASD-STAN prEN 4709-002
Remote ID capability may depend on the drone, transmission environment and applicable regional requirements.
Interfaces & Connectivity
Type-C
For charging, data connection and OTA firmware upgrades.
Bluetooth
For wireless data transmission and OTA updates.
GPIO
For external alarm and system integration.
SMA Antenna Interfaces
Three external detection antennas provide the RF receiving interface.
Package Contents
| Item |
Quantity |
| RY13m Main Device |
1 |
| Li-ion Battery Pack |
1 |
| Detection Antennas |
3 |
| Type-C Charging Cable |
1 |
| Power Charger Adapter |
1 |
FAQ
What frequency range does the RY13m support?
The RY13m covers 300 MHz–13.4 GHz, providing ultra-wideband RF detection for a broad range of drone transmission frequencies.
How far can the RY13m detect a drone?
The specified detection range is 500 m to 5 km. The maximum range can reach up to 5 km under open line-of-sight conditions with typical full-power transmission. Actual performance varies according to the drone, frequency band and environment.
How many drone models can the RY13m identify?
The built-in drone signature library supports more than 100 drone models and transmission types.
Does the RY13m support DJI drones?
Yes. The device supports major-brand drone platforms including DJI, Autel, Fimi and Hubsan, subject to the specific model and available signature data.
Does it support FPV drones?
Yes. The RY13m supports both analog and digital FPV transmission types, including compatible Walksnail, HDZero, OpenIPC and other platforms.
Does the RY13m support Remote ID?
Yes. It supports Remote ID reception through Wi-Fi and Bluetooth, including 2.4 GHz and 5.8 GHz Wi-Fi.
Can the drone signature library be updated?
Yes. OTA firmware and signature library updates are supported through Type-C or Bluetooth.
How long can the device operate continuously?
A single removable battery provides approximately 8 hours of operation under room-temperature conditions.
Can the RY13m be integrated into a Counter-UAS system?
Yes. The RY13m provides Bluetooth, Type-C and GPIO interfaces and can be connected with compatible countermeasure equipment for system-level integration.
Is OEM/ODM customization available?
Roviyno supports OEM/ODM cooperation and customized configurations for qualified projects. Please contact our sales team for technical requirements and integration options.
